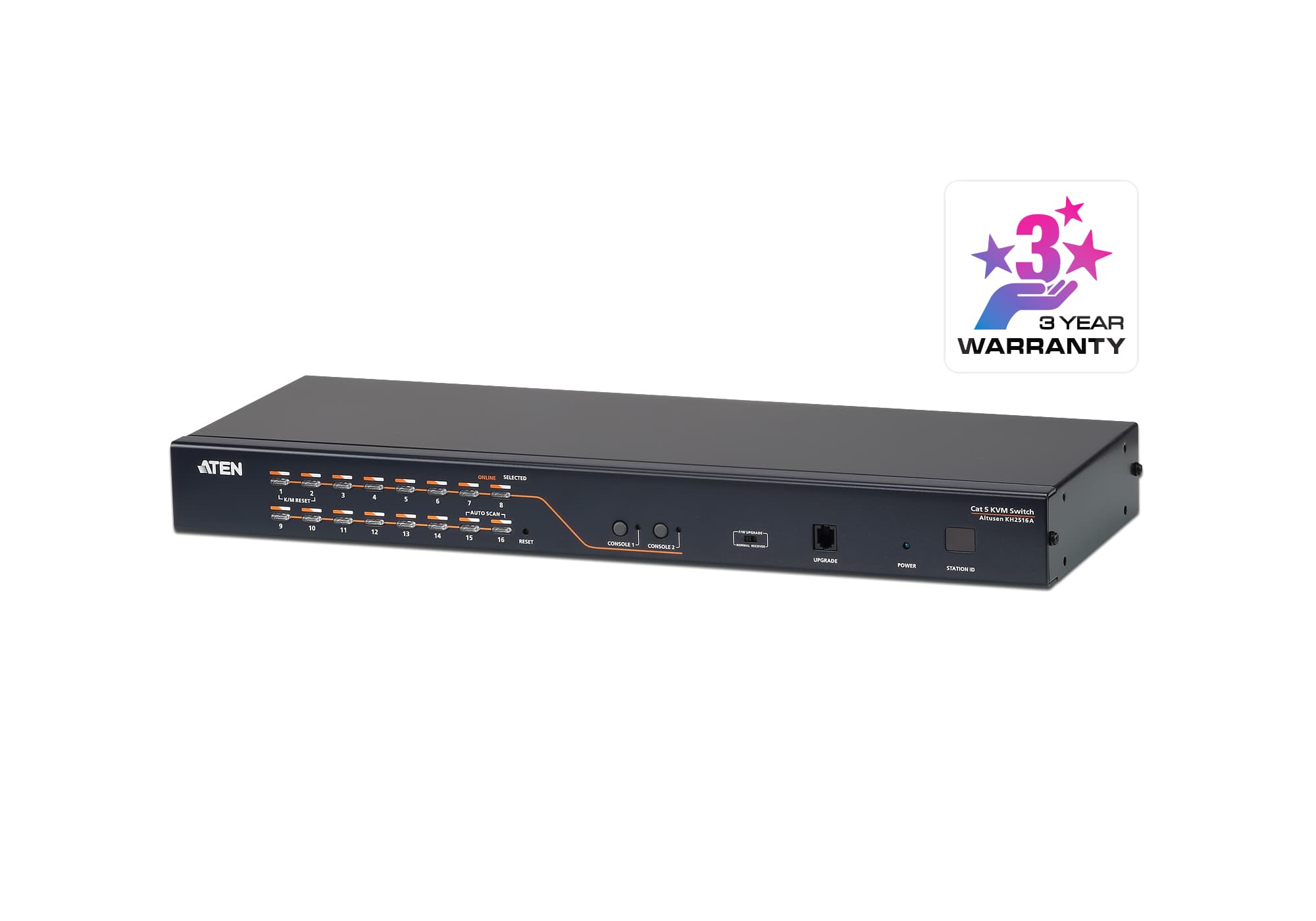

2-Console 16-Port Multi-Interface (DisplayPort, HDMI, DVI, VGA) Cat 5 KVM Switch

Name: 2-Console 16-Port Multi-Interface (DisplayPort, HDMI, DVI, VGA) Cat 5 KVM Switch
Brand: ATEN
SKU: KH2516A

KH2516A

Заяви оферта Datasheet PDF Ръководство Бърз старт CAD чертеж

Cat 5 KVM превключвател с две конзоли, които независимо и едновременно управляват до 16 компютъра, а с daisy-chain — до 256. Поддържа смесени PS/2 и USB конзоли и компютри.

Характеристики

Two KVM consoles independently and simultaneously control up to 16 directly connected computers

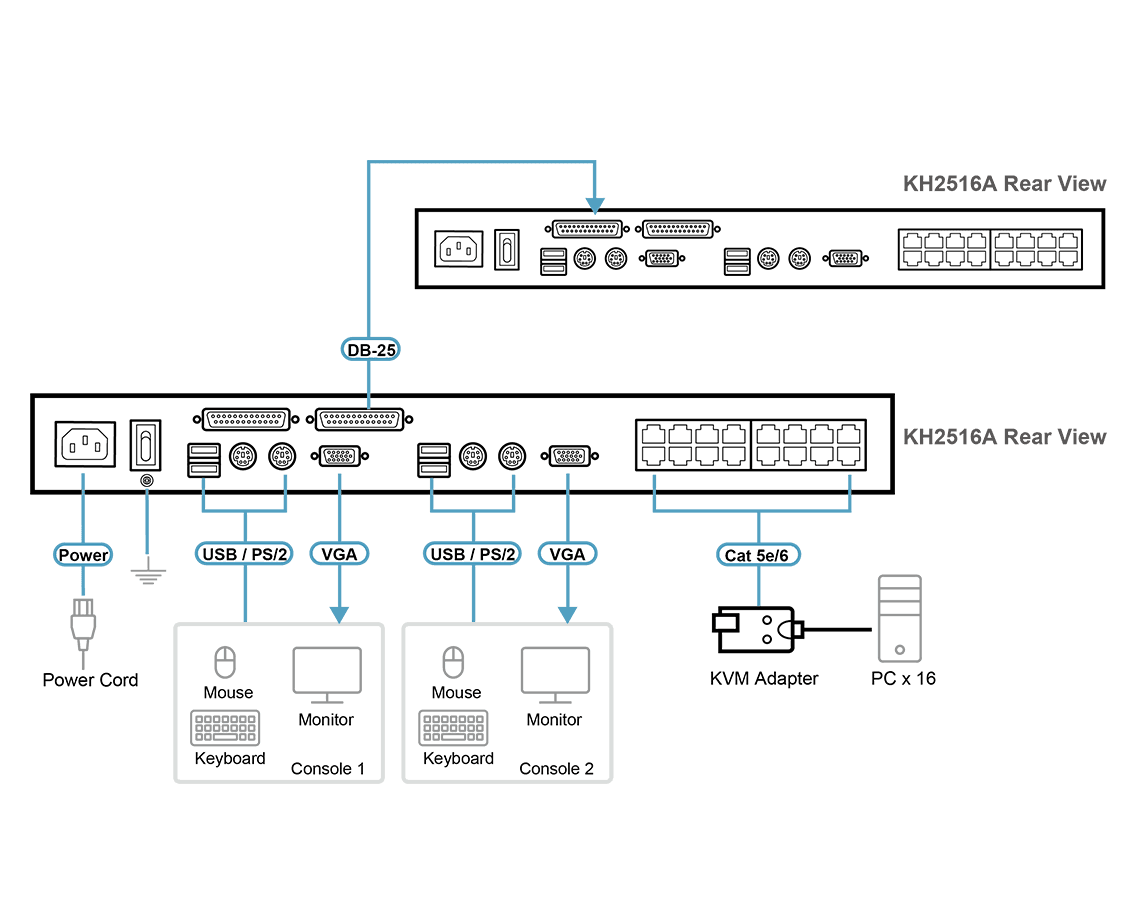

By daisy chaining up to 15 additional KH2516A switches, as many as 256 computers can be controlled from the original KVM console
Console conversion – any type of KVM console can control any type of computer; mixed combinations (PS/2&USB) supported on both the KVM console and computer sides
Superior Video Quality- Supports the video resolutions up to 1920 x 1200 @60Hz for up to 30 meters, 1600 x 1200 @60Hz for up to 40 meters, and 1280 x 1024 @75Hz for up to 50 meters*
OSD Backup/Restore feature – enables the administrator to back up the switch's configuration and user profile information
Configure port access rights for users on a port - by - port basis
Diversified port operation mode enables flexible computer management – Occupy, Exclusive and share modes
Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
Multiplatform support – Windows, Linux, Mac and Sun
Compatible with ATEN KVM adapter cables – allows flexible interface combinations (PS/2, USB with VGA, DVI, HDMI and DisplayPort video interface, Sun and serial) to control all computer types
Multiple User Accounts -Supports up to 10 user and 1 administrator accounts
Two-Level Password Security – Supports one administrator and ten user profiles. Password protection prevents unauthorized accessing to the installation
Auto Scan mode enables continuous monitoring of user-selected computers
Broadcast Mode sends commands from the console to administrator-selected computers – allowing you to perform operations (such as software installation, upgrades, shutdowns, etc.), on them simultaneously
Adapter ID
Firmware Upgradeable *With KVM Adapter Cable KA7000 series.

Връзки към компютри

Директно: 16
Максимум: 256 (via Daisy-chain)
Избор на порт: OSD, Hotkey, Pushbutton

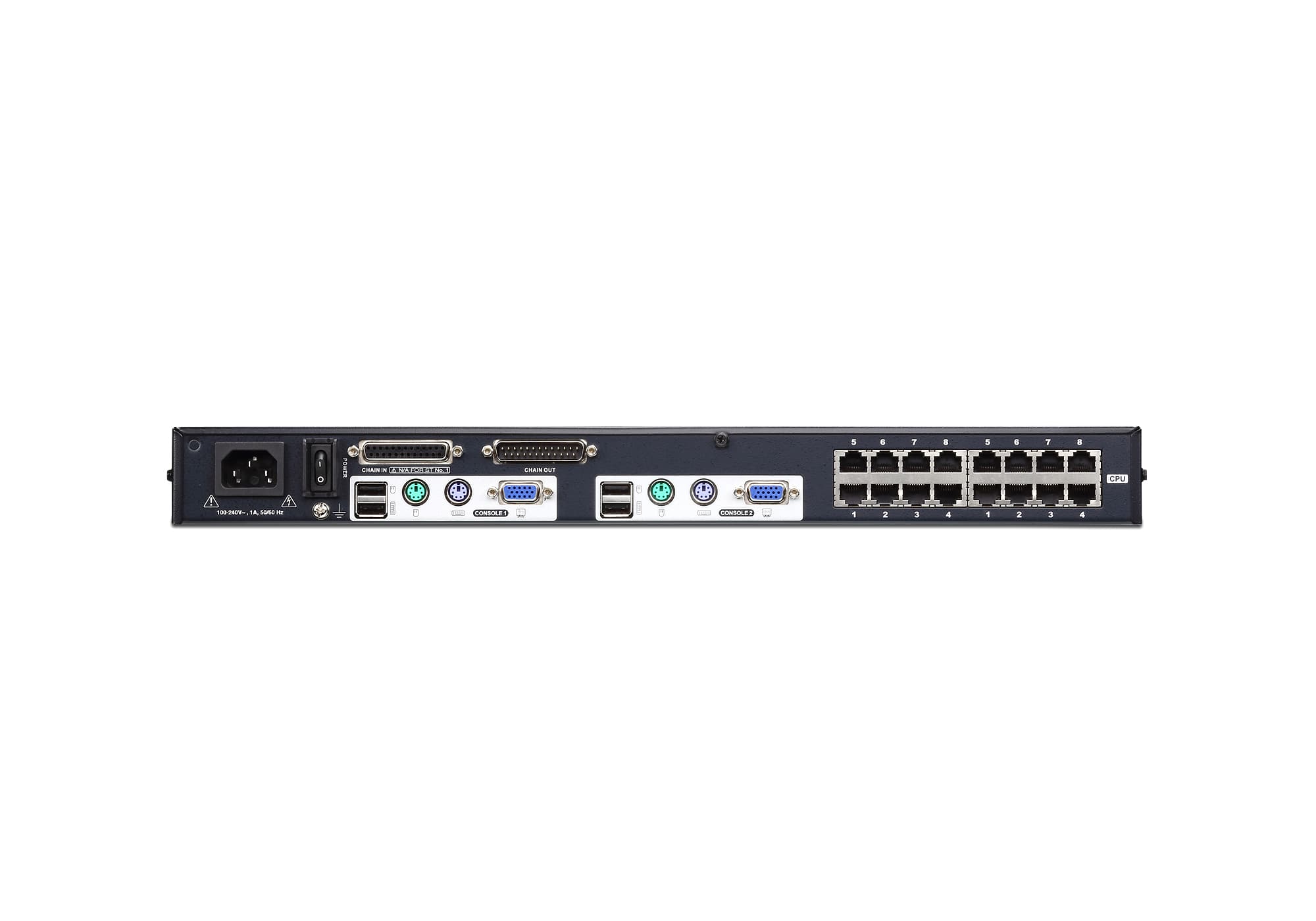

Конектори

Конзолни портове: 4 x USB Type A Female 2 x 6-pin Mini-DIN Female (Purple) 2 x 6-pin Mini-DIN Female (Green) 2 x HDB-15 Female (Blue)
KVM портове: 16 x RJ-45 Female
Daisy Chain портове: 1 x DB-25 Female (Black) 1 x DB-25 Male (Black)
Обновяване на фърмуера: 1 x RJ-11 Female
Захранване: 1 x IEC 60320/C14

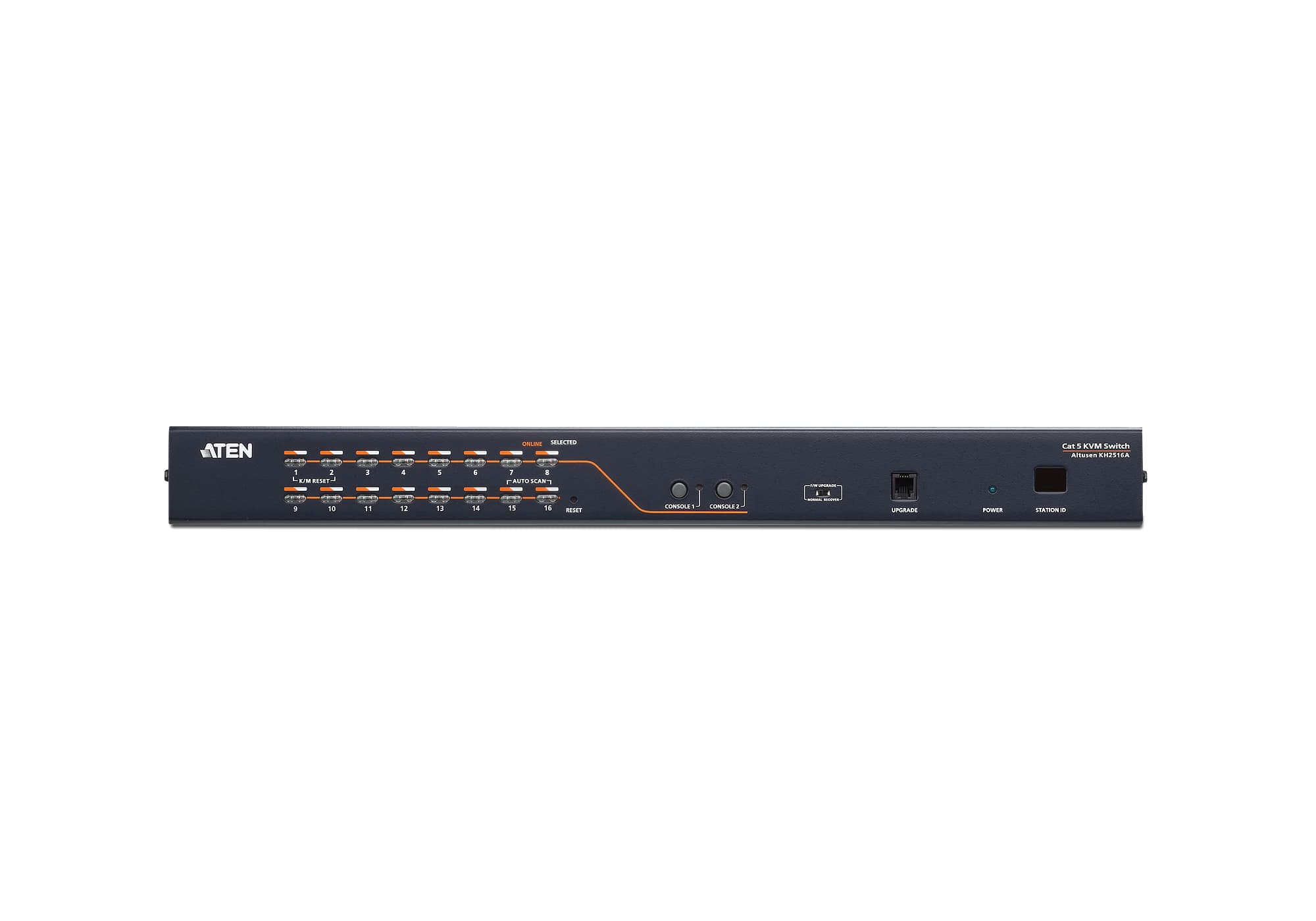

Бутони и превключватели

Избор на порт: 16 x Pushbutton
Избор на конзола: 2 x Pushbutton
Нулиране: 1 x Semi-recessed Pushbutton
Обновяване на фърмуера: 1 x Slide
Захранване: 1 x Rocker

Индикатори

Онлайн: 16 (Green)
Избран: 16 (Orange)
Конзола: 2 (Orange)
Захранване: 1 (Blue)
ID на станция: 1 x 7-segment LED display (Orange)

Емулация

Клавиатура / мишка: PS/2; USB
Интервал на сканиране: 1-255 Seconds
Видео: 1920 x 1200 @ 60 Hz (30 m); 1600 x 1200 @ 60 Hz (40 m); 1280 x 1024 @ 75 Hz (50 m)
Макс. входна мощност: 100–240 VAC; 50/60 Hz; 1A
Консумация: AC110V:9.7W:63BTU/h AC220V:10.7W:67BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Работна среда

Работна температура: 0-50°C
Температура на съхранение: -20-60°C
Влажност: 0-80% RH, Non-condensing

Физически характеристики

Корпус: Metal
Тегло: 2.85 kg ( 6.28 lb )
Размери (Д x Ш x В): 43.72 x 15.58 x 4.40 cm (17.21 x 6.13 x 1.73 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
