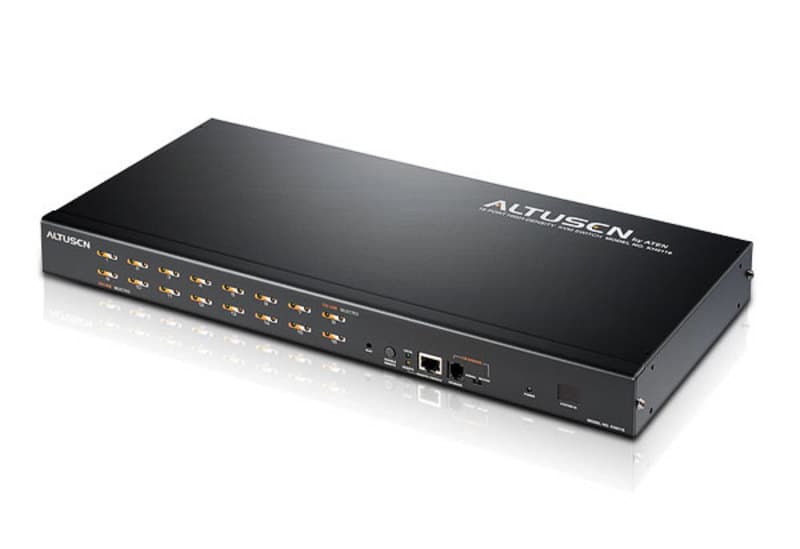

16-Port High-Density KVM Switch
KH0116Снет от производство
KVM превключвател 1U за 16 компютъра от една PS/2 конзола, с верижно свързване до 512 машини. Поддържа отдалечена конзола през Cat 5e кабел към модулите KA9250.
Характеристики
- A single PS/2 console controls up to 16 computers
- Remote Console Operation - control your system from the remote PS/2 keyboard, mouse, and monitor consoles
- Cat 5e cable to connect the KH0116 and remote units (KA9250)

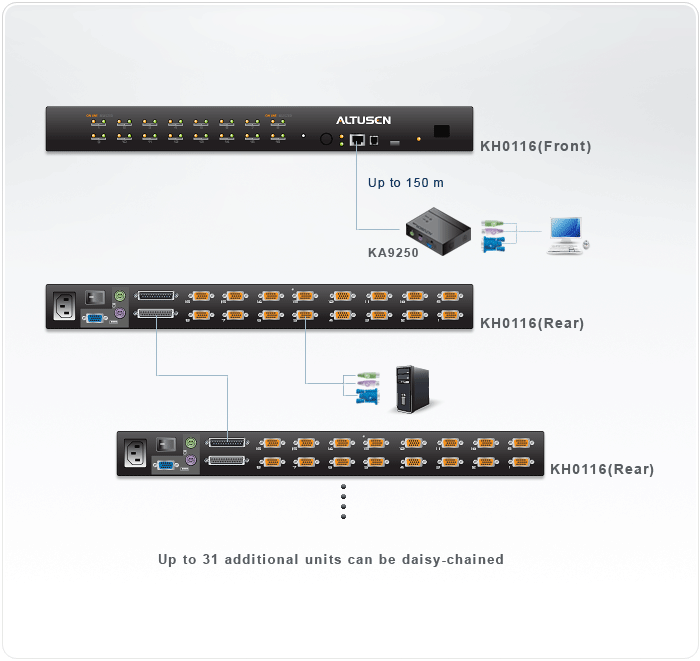

- Dedicated chain ports - daisy chain up to 31 additional units - control up to 512 computers from a single console
- No software required - convenient computer selection via Hotkeys and intuitive On Screen Display (OSD) menus
- No need for manual DIP switch setting - autosensing of station positions for daisy chained installations
- LED indicates station's position
- Auto Scan Mode enables continuous monitoring of user-selected computers
- Hot Pluggable - add or remove computers without having to power down the switch
- Two level password security - only authorized users view and control the computers - up to four Users plus an Administrator - separate profi les for each
- Port names automatically reconfi gured when station sequence is changed
- Superior video quality - resolutions of up to 2048 x 1536 -each port supports DDC2B
- Multiplatform support:Windows 2000/XP/Vista, Linux, Unix and FreeBSD.
- For more information about KVMs which can connect to KH0116, see Compatible KVM Table
Връзки към компютри
- Директно
- 16
- Максимум
- 512 (via Daisy-chain)
- Избор на порт
- Hotkey, OSD

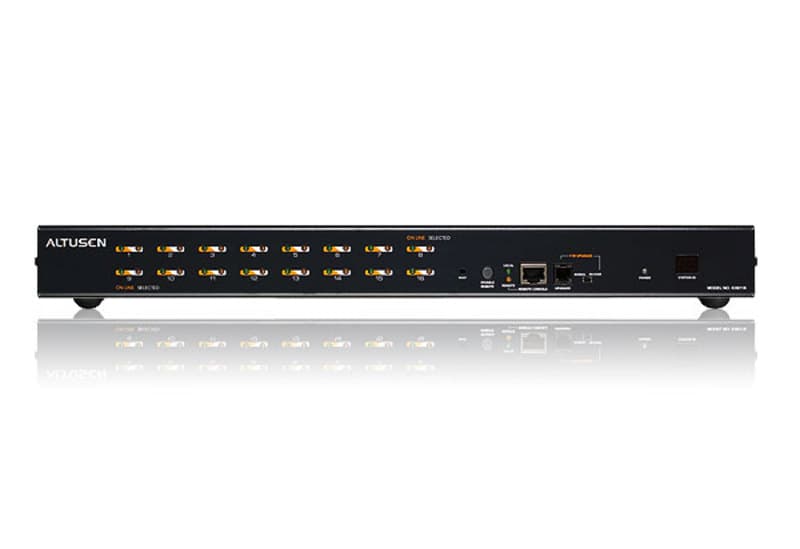

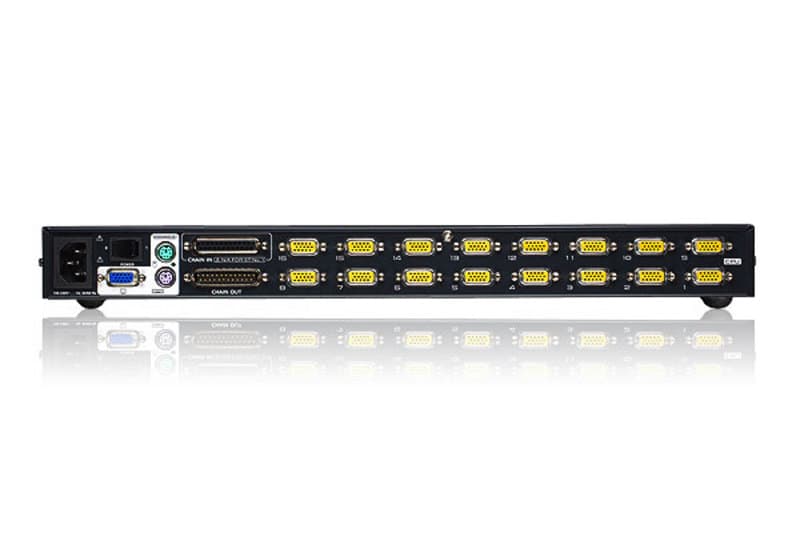

Конектори
- Конзолни портове
- 1 x 6-pin Min-Din Female (Purple) 1 x HDB-15 Female (Blue) 1 x 6-pin Min-Din Female (Green)
- KVM портове
- 16 x SPHD-15 Female (Yellow)
- Daisy Chain портове
- 1 x DB-25 Female (Black) 1 x DB-25 Male (Black)
- Обновяване на фърмуера
- 1 x RJ-11 Female (Black)
- Отдалечена конзола
- 1 x RJ-45 Female (Black)
- Захранване
- 1 x 3-Prong AC Socket
Бутони и превключватели
- Нулиране
- 1 x Semi-Recessed Pushbutton
- Захранване
- 1 x Rocker
- Възстановяване на фърмуера
- 1 x Slide
- Отдалечена конзола
- 1 x Locking Pushbutton
Индикатори
- Онлайн
- 16 (Green)
- Избран
- 16 (Orange)
- Захранване
- 1 (Blue)
- ID на станция
- 2 x 7 Segment (Orange)
Емулация
- Клавиатура / мишка
- PS/2
- Видео
- 2048 x 1536; DDC2B
- Интервал на сканиране
- 1-255 Seconds
- Макс. входна мощност
- 100-240V AC; 50/60Hz; 1A
- Консумация
- 120V/8W; 230V/8W (Max.) Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 50°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0-80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 3.56 kg
- Размери (Д x Ш x В)
- 43.70 x 21.00 x 4.40 cm
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Фърмуер
