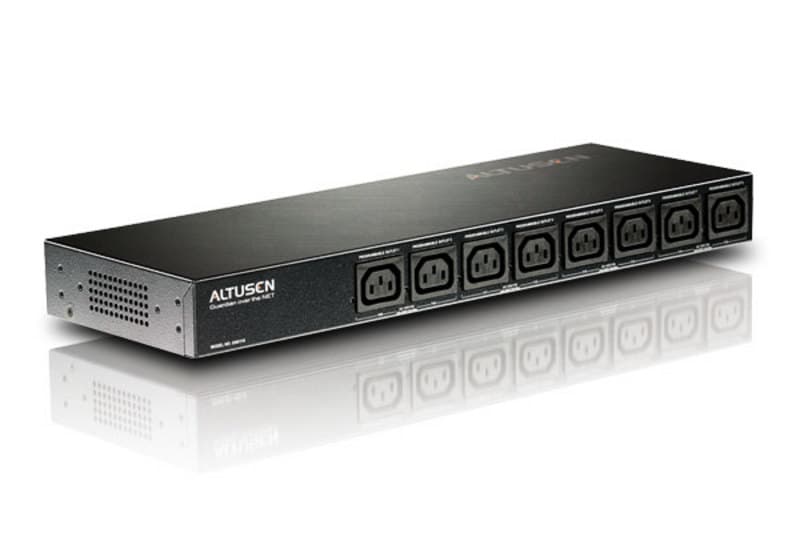

16-Port Guardian Over the NET™
GN0116Снет от производство
Устройство за отдалечен мониторинг и управление на сървърни помещения през интернет — 6 аналогови и 2 цифрови входа за сензори (температура, влажност, напрежение), 8 цифрови изхода за алармени устройства.
Характеристики

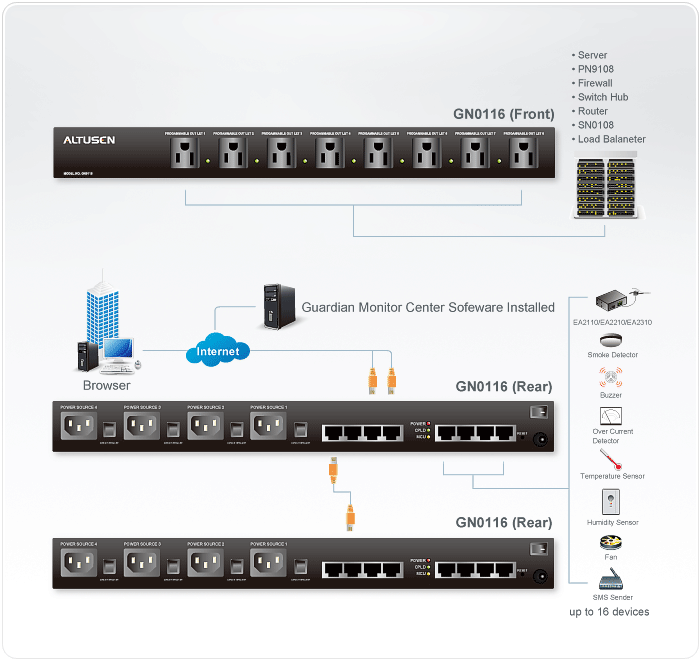

- Remote environmental monitoring and control from any computer connected to the Internet
- 6 Analog inputs and 2 Digital inputs support environmental sensors, including temperature, humidity, voltage, current, intrusion, smoke, leakage, flow, vibration, etc.
- 8 Digital outputs support alarm devices, including buzzer, light, SMS sender, etc.
- 8 programmable AC outlets support remote power control
- Daisy-chain up to 255 additional stations and manage all installed devices in master GN0116 UI
- Modem support for OOBC management
- System configuration and data center environmental monitoring via embedded web UI, ssConsole* and Guardian Monitor Center software
- Remotely toggle Power outlets or Digital output ports on/off
- Monitor Refresh Frequency Setting - set screen refresh time intervals and devices status update frequency
- Logical Configuration • Configurable event trigger threshold or condition for input ports • Configurable relationship and operation logic between input ports and output ports • Automatic event triggering when threshold has been exceeded • Automatically enable output port to execute pre-defined operation without human intervention or 3 rd party software involvement
- Embedded web UI supports 1 Administrator and 4 Users accounts
- Firmware upgradeable
- UL/TUV approved Guardian Monitor Center Software
- An intuitive, user-friendly GUI for managing and monitoring all GN0116s and network connected devices via single web UI
- Display I/O port value & status in web UI and refresh according to pre-defined time interval
- Power on/off operation executed via a single mouse click in web UI
- Stored historical I/O port data can be displayed via time-based graph chart or exported via .CSV file
- I/O port threshold or condition, severity and automatic control logic configured via web UI
- Event notification sent via SMTP server
- Event log displayed by Category, Device and Severity, and offers search, filter and export (.CSV file) functions
- Back up and restore user system configuration settings
- Multilevel user management defines roles and controls access to GN0116 units - System Administrator, Device Administrator, User, Auditor
- Advanced password rules ensure users create strong passwords
- Stringent login policy features to govern multiple concurrent user logins that include: Multiple User Login Disabled, Password Expiration Enabled, Login Failure Enabled Login String setting for enhanced security - entry login string along with IP address when user logs in
- IP filtering lets you control who has access to your GN0116 devices
- End session feature - administrators can terminate running sessions for security reasons * ssConsole (Serial Server Console) is an application program provided with the GN0116 (for Windows environment only).
