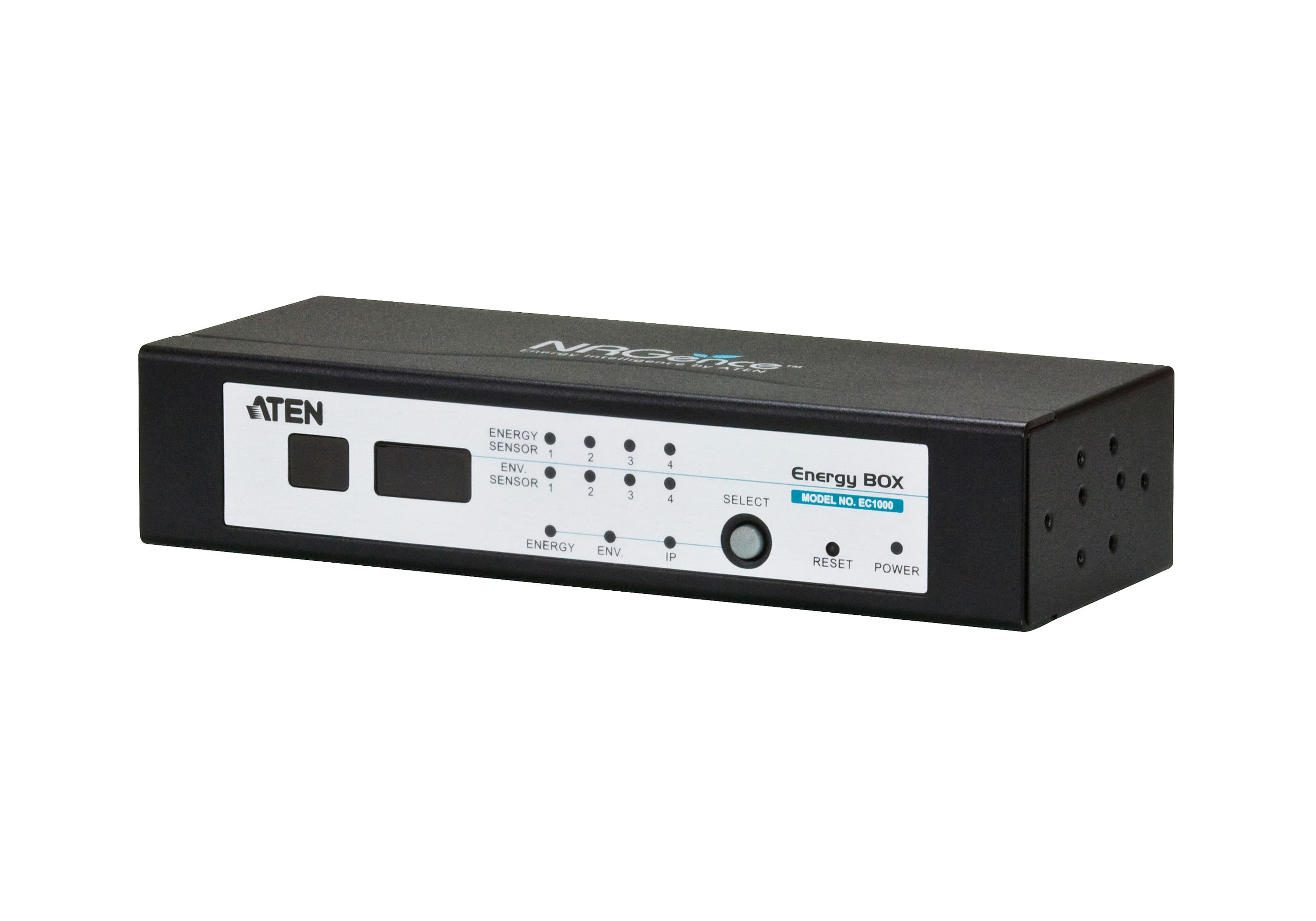

Energy Box with Real-time Power Monitoring
EC1000

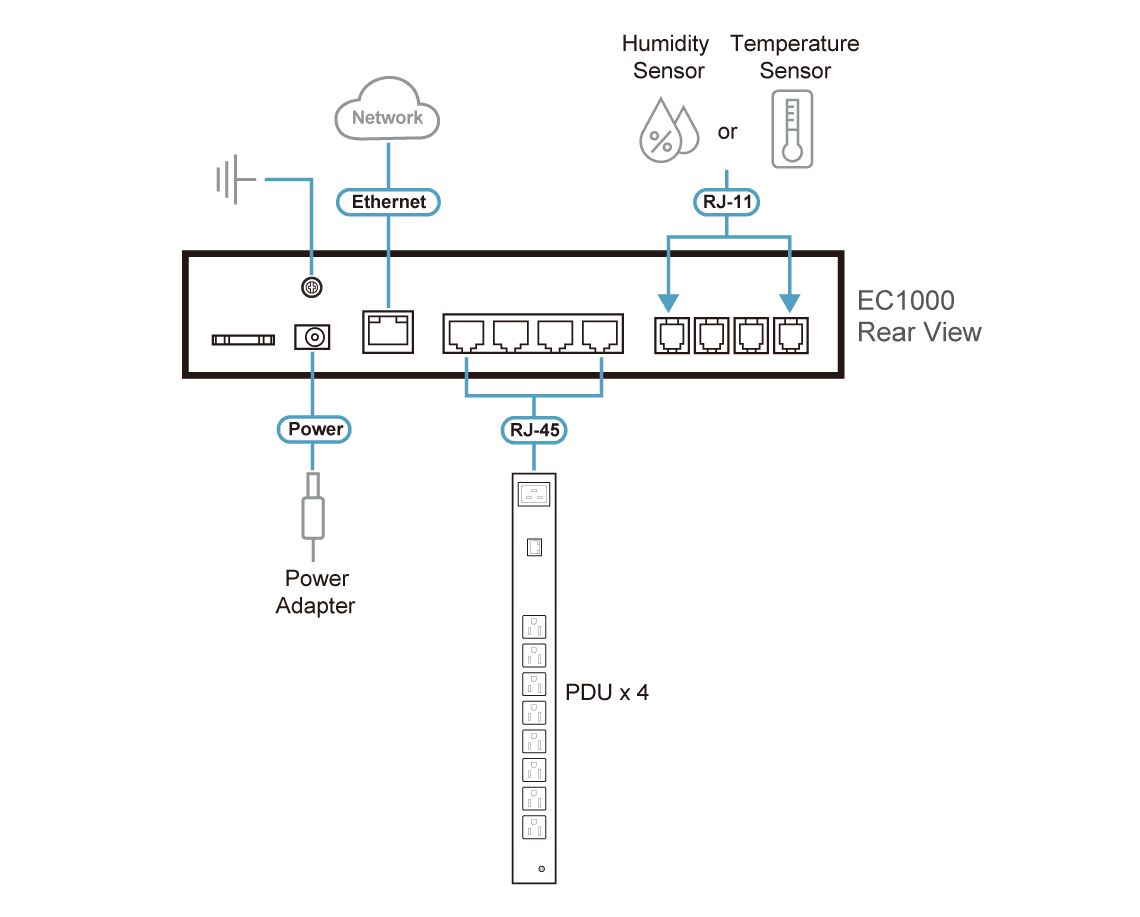

Модул за мониторинг в реално време на до 4 Energy PDU (0A–32A на порт) през 4 сензорни порта RJ-45; 4 порта RJ-11 са за сензори за околната среда. Монтаж 1U в rack.
Характеристики
- Operation
- Space saving 1U rack mounting with front and rear mounting
- 4 RJ-45 Energy Sensor Ports to monitor four Energy PDU currents (0A to 32A per port)
- 4 RJ-11 Environment Sensor Ports to monitor temperature, humidity, and differential pressure*
- Maximum Amperage Monitor 32A@100V~240V (Energy Box)

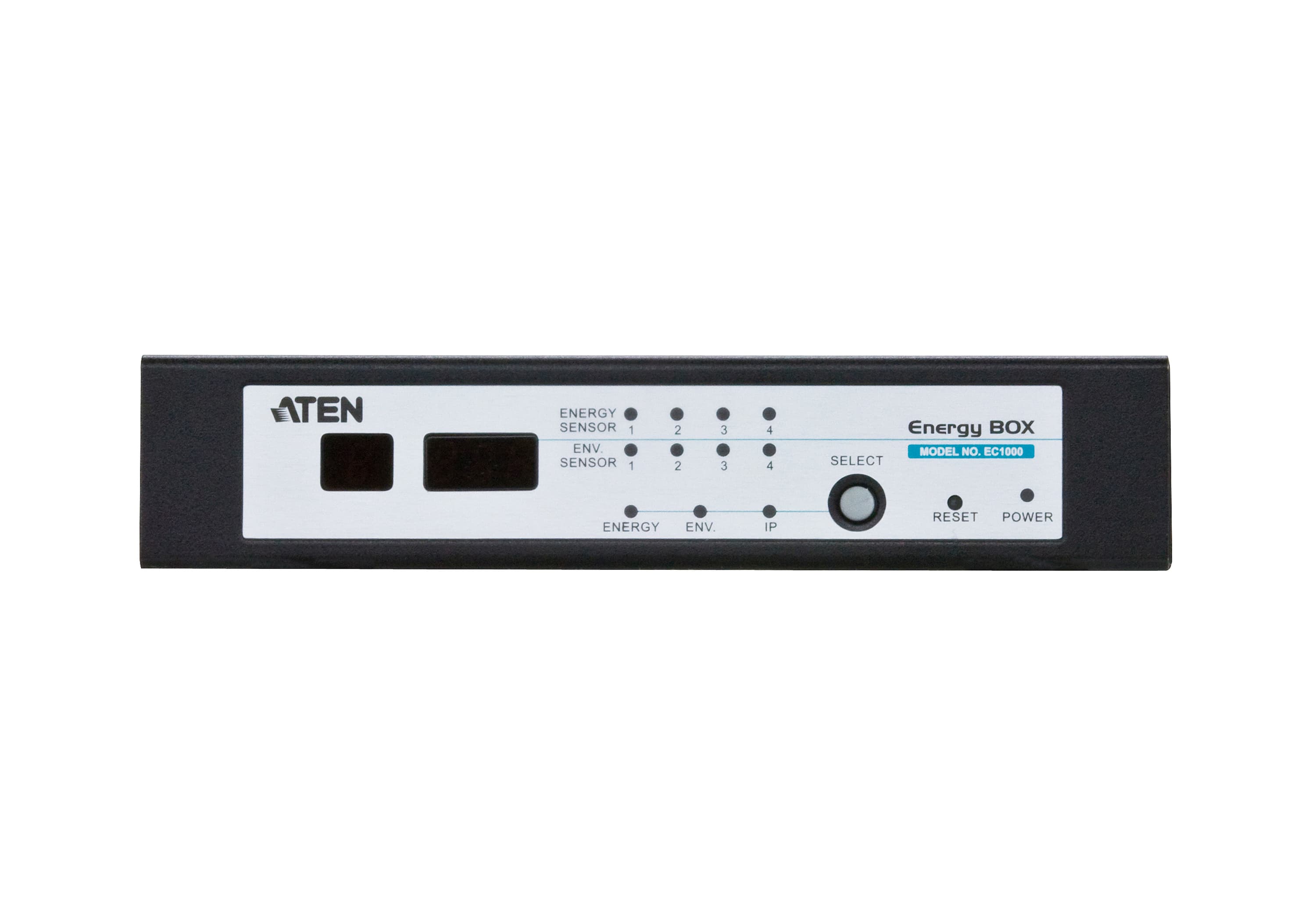

- 3 digit 7 segment front panel LED displays current / sensor / IP address information
- Threshold monitoring for: 1.Current 2.Temperature* 3.Humidity* 4.Differential pressure*
- Threshold alerting through: 1. Local: audible alarm and LED lights 2. Remote: SMTP / SNMP trap / Syslog Management
- Front panel LED indicators for current, temperature*, humidity*, differential pressure*, and IP address information at the Energy Box
- Remote real-time current, temperature*, humidity*, and differential pressure* monitoring and management
- Management through eco DC (Energy & DCIM Management / Web GUI) or 3rd party SNMP manager
- Supports name assignment for individual Energy PDUs
- Event Logging – 128 line event log
- Syslog support
- F/W upgradable Remote Access
- Remote management via TCP / IP using built in 10 / 100Mbps Ethernet port
- Management via built in browser based GUI
- Network Interfaces: TCP / IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, 10Base-T / 100Base-TX, auto sense, Ping
- Supports SNMP Manager V1, V2, V3 Security
- Strong security features include password protection and advanced encryption technologies – utilizing 128 bit SSL
- RADIUS authorization and authentication Note: * Requires external sensors
Спецификация
- Връзки към енергийни PDU
- 4
- Избор на порт
- Pushbutton

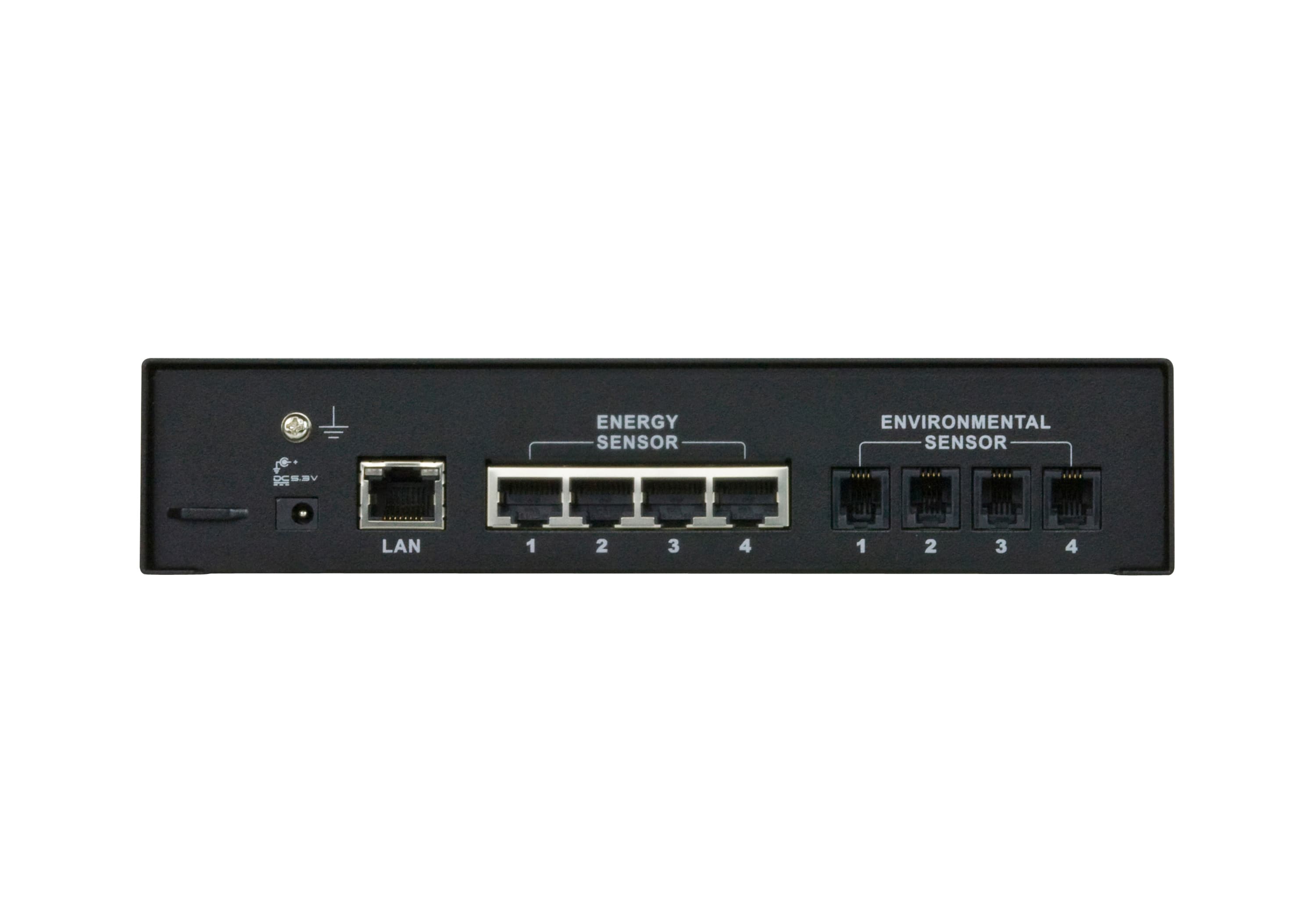

Конектори
- Порт за енергийни сензори
- 4 x RJ-45 Female
- Портове за сензори
- 4 x RJ-11 Female
- Захранване
- 1 x DC Jack
- LAN портове
- 1 x RJ-45 Female
Бутони и превключватели
- Нулиране
- 1 x Semi-recessed Pushbutton
- Избор
- 1 x Selection Pushbutton
Индикатори
- Състояние на PDU
- 4 (Orange)
- Състояние на сензорите за среда
- 4 (Green)
- Избран
- 1 digit 7-segment (Orange)
- Захранване
- 1 (Blue)
- Връзка
- 1 (Orange/Green) 1 (Green)
- Диапазон на мониторинг
- 100–240V, 50/60Hz, 0A to 32A(per port) LED Display Resolution: 0.1A Precision: ±0.1A@0 ~ 1A, ±1% >1A
- Консумация
- DC5V:2.93W:14BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-50°C
- Температура на съхранение
- -20-60°C
- Влажност
- 0 - 80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.59 kg ( 1.3 lb )
- Размери (Д x Ш x В)
- 20.00 x 7.59 x 4.40 cm (7.87 x 2.99 x 1.73 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
