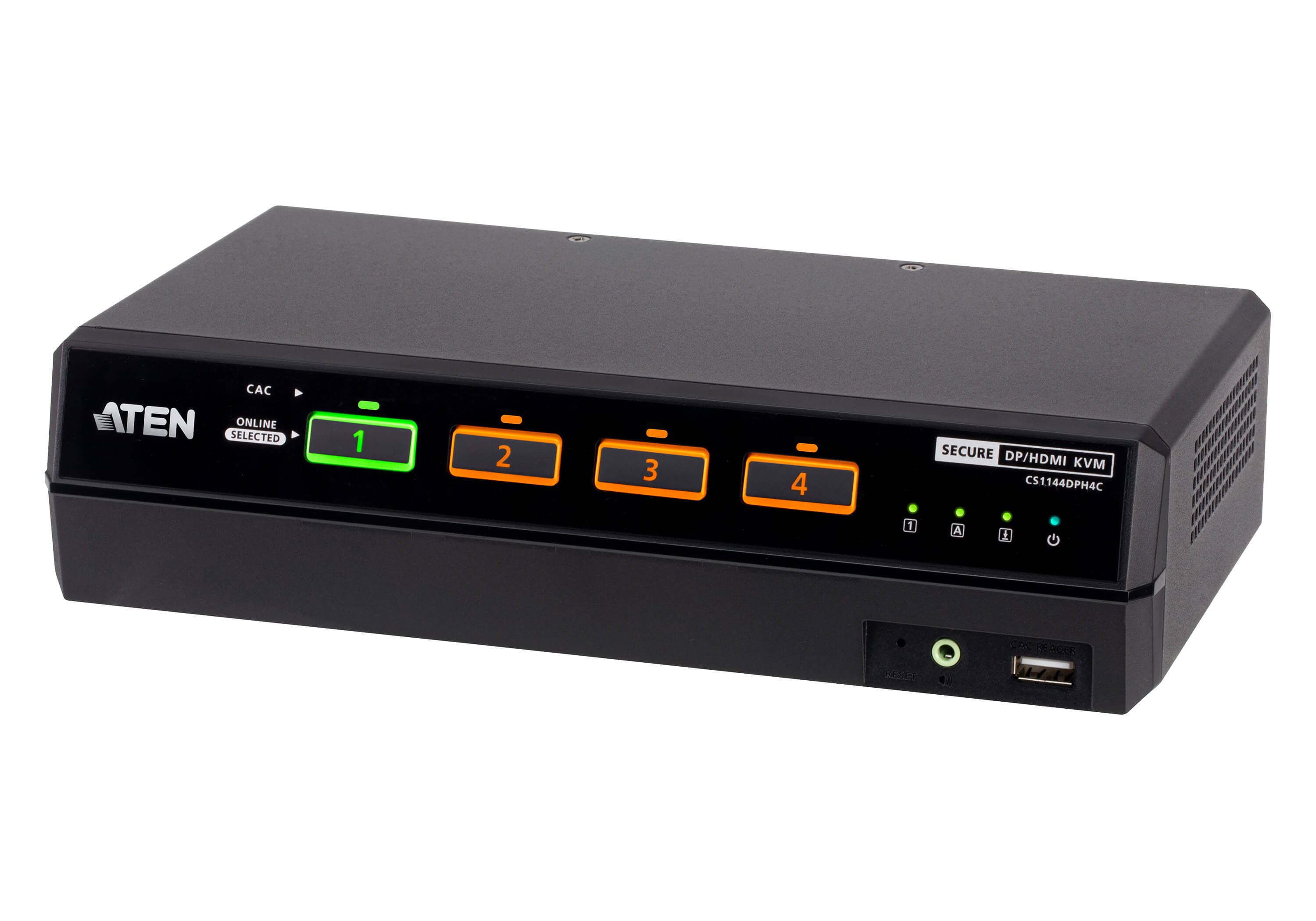

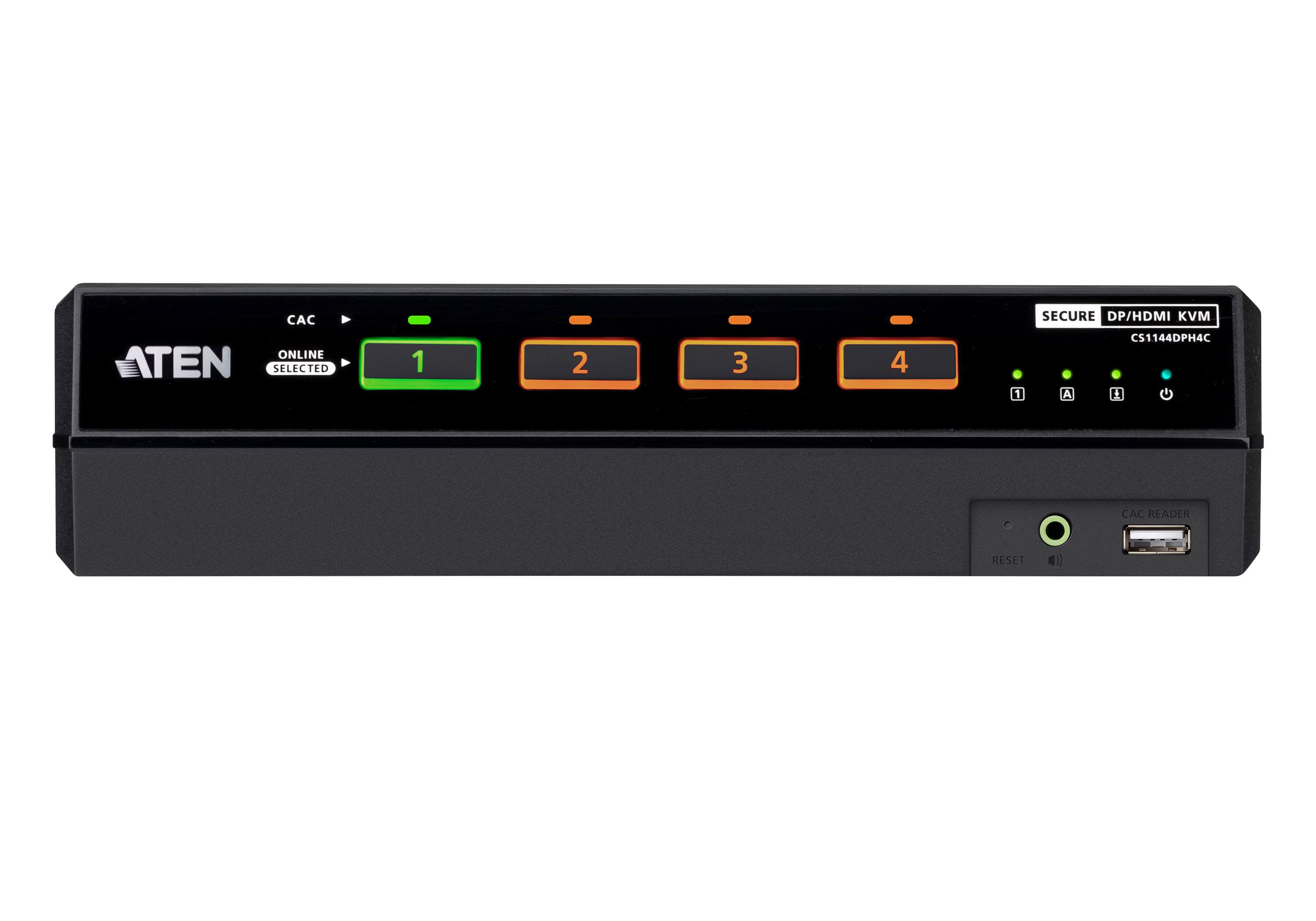

4-Port USB 5K DisplayPort/HDMI Dual Display Universal Secure KVM Switch with CAC (PSD PP v4.0 Compliant)

Характеристики

• Compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) security requirements
• Listed on the NATO NIAPC Product Registry
• Always-on chassis intrusion detection – renders the ATEN PSD PP v4.0 Universal Secure KVM Switch series inoperable when physical tampering is detected
• Tamper-evident labels – provides visual indication of any attempt to access the ATEN PSD PP v4.0 Universal Secure KVM Switch's internal components
• Non-reprogrammable firmware – prevents reprogramming the ATEN PSD PP v4.0 Universal Secure KVM Switch's firmware
• Restricted peripheral connectivity – non-authorized HIDs (Human Interface Devices), video, or authentication device connections are rejected
• Port selection via pushbuttons / Remote Port Selector (RPS) 1 only to enhance security
• Configurable Port LED color and Port Name Labels – easier identification between ports connected to different security classification levels
• LED indicators for peripheral filtering and KVM security status
• Strict audio filtration protects against audio leakage
• Compact size, rugged metal enclosure
• True data path isolation – data cannot be transferred between computers

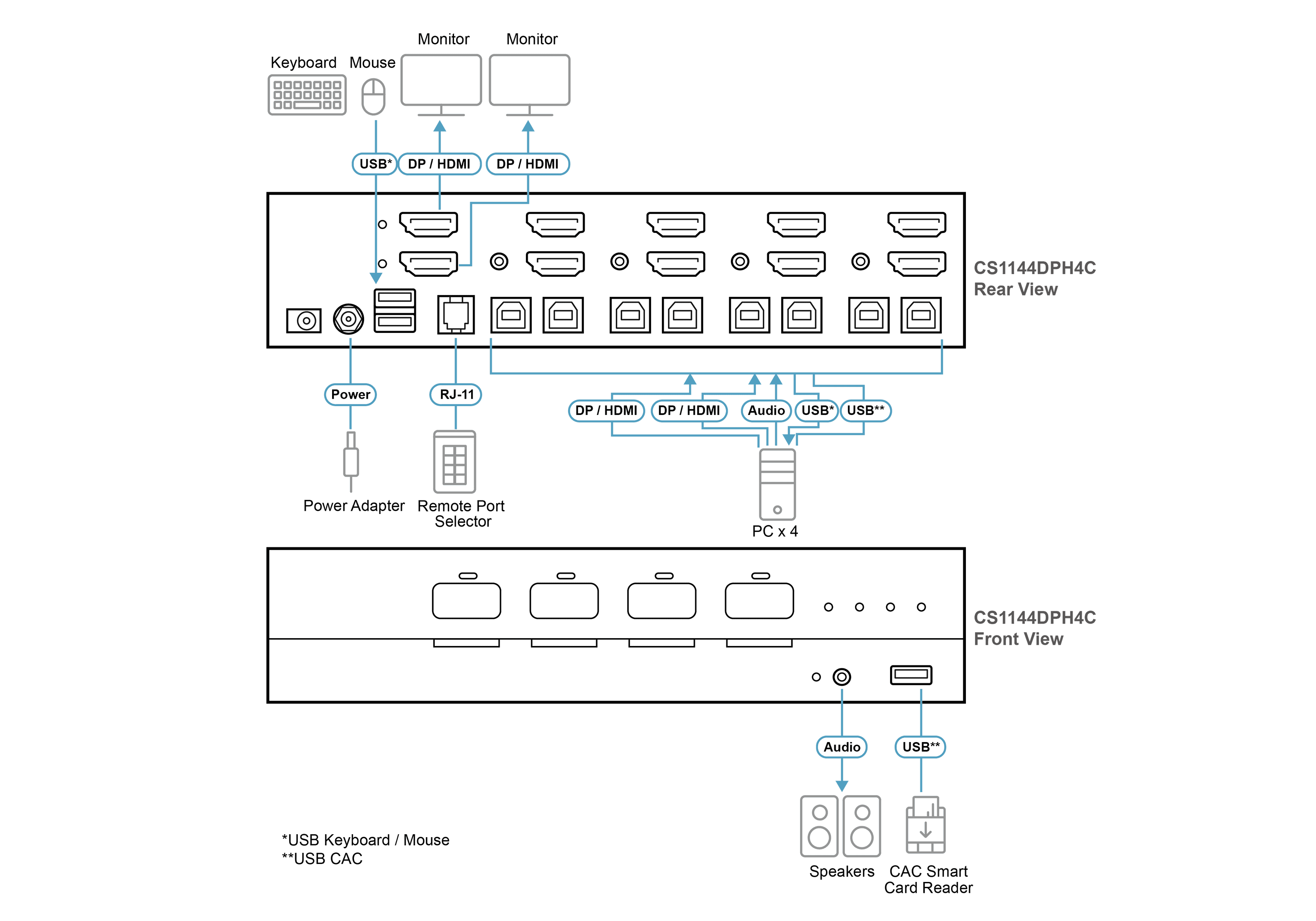

• The ATEN PSD PP v4.0 Universal Secure KVM Switch controls and isolates data flow between the console devices and connected computers
• Unidirectional data flow between console devices and the selected computer is ensured
• Supports analog audio (speaker only) 2 via isolated audio paths
• Supports DisplayPort (or HDMI) embedded digital audio
• The ATEN PSD PP v4.0 Universal Secure KVM Switch's keyboard/mouse data is automatically deleted after transmission and automatically purged when the KVM port focus is switched
• Supports administrative configuration of CAC Port filtering to accept or reject specific USB authentication devices
• Supports administrative configuration of keyboard / mouse ports filtering to reject specific USB HID devices
• Provides administrative functions for authorized administrators to audit KVM log data
• Supports enable / disable CAC function by port
• Superior video quality – up to 5K (5120 x 2880 @ 60Hz) 3

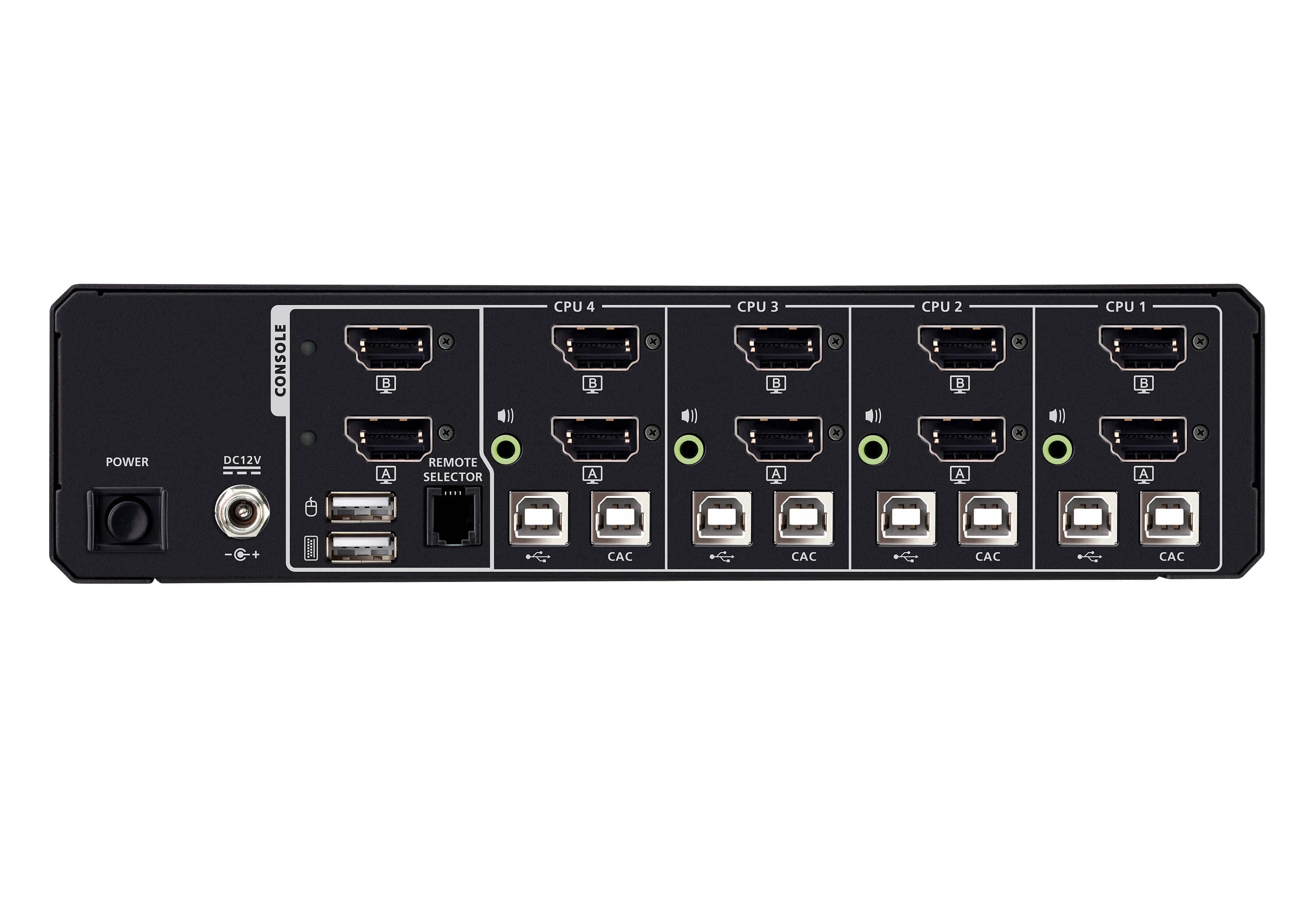

• DisplayPort / HDMI combo connectors support DisplayPort and HDMI video interfaces (both PC and Console sides)
• Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes resolutions when switching among different sources Note: 1. The Remote Port Selector is not supplied in the package and requires a separate purchase. 2. Only analog speaker data input is supported. 3. Supports video output resolutions up to 5120 × 2880 @ 60Hz, 5120 × 2160 @ 60Hz, 5120 × 1440 @ 60Hz/120Hz/144Hz, 3840 × 2160 @ 60Hz/120Hz/144Hz
