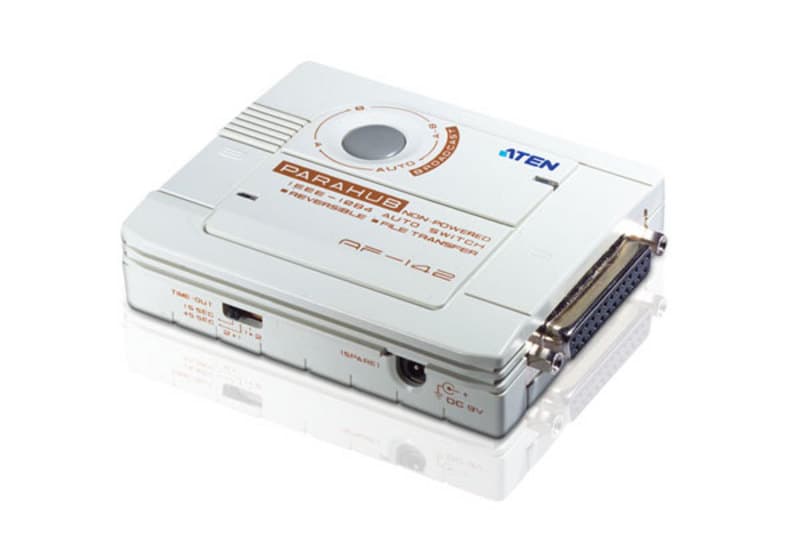

FIFO превключвател за принтер и данни — 2 компютъра споделят 1 принтер, с обратен режим 1 компютър към 2 принтера; прехвърля и файлове между компютрите.
Характеристики
- Shares peripherals between computers.

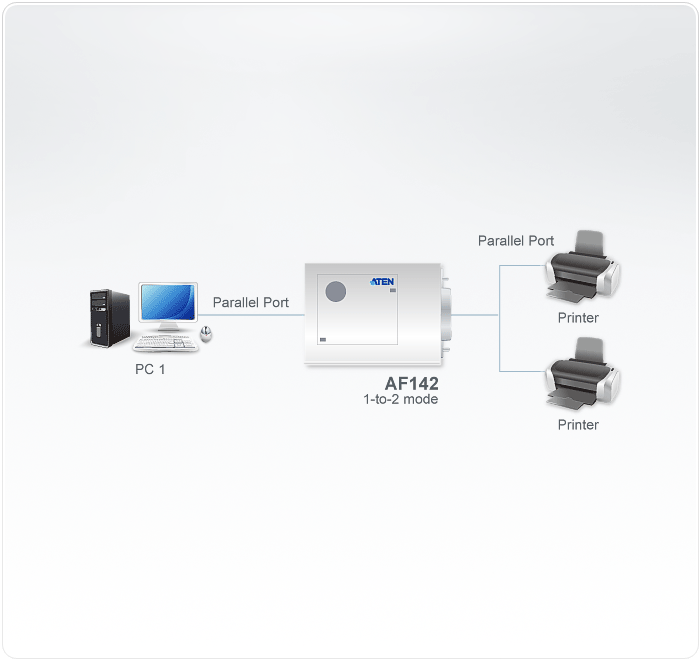

- Reversible operation for 1-in-2-out or 2-in-1-out.
- Transfers files between computers.
- Supports IEEE-1284 nibble mode.
- Print job management is first come, first serve.
- Supports broadcast mode.
- Selects ports by button and software code operation.
- Non-Powered operation.
- HP Laser Jet, Canon, Epson and NEC Compatible.
- OS Support: Windows 2000, Windows XP
Спецификация
- Конектори
- 3 x DB-25 Female
Индикатори
- Активност на принтера
- 2 (Red)
Избор на порт
- Вход
- (2 > 1) Auto / Manual PC Selection
- Изход
- (1 > 2) Software / Manual Printer Selection
- Арбитраж на входовете
- First Come First Served (2 > 1)
- Пренос на файлове
- Yes (2 > 1)
- Broadcast
- Yes (1 > 2)
- Избор на таймаут
- 15, 45 Seconds (2 > 1)
- Консумация
- DC 9V, 0.9W (Max.) Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Обхват на сигнала
- 6 m (Max)
Работна среда
- Работна температура
- 0 ~50˚C
- Температура на съхранение
- -20 ~ 60˚C
- Влажност
- 0~80% RH, Non-condensing
Физически характеристики
- Корпус
- Plastic
- Тегло
- 0.11 kg ( 0.24 lb )
- Размери (Д x Ш x В)
- 9.30 x 7.70 x 2.55 cm (3.66 x 3.03 x 1 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
